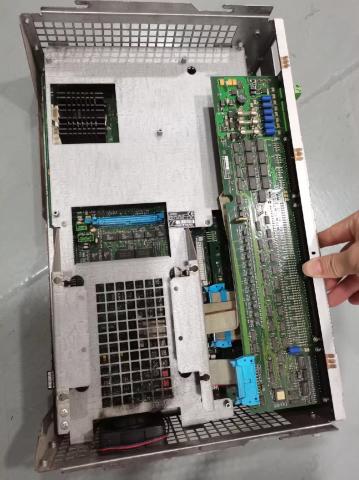

    • HEIDENHAIN CC422 6-Axis Controller

    • Model : CC422
    • Category Specification
      Control Axes 6 axes (simultaneous)
      Input Signals 6x 1Vpp sinusoidal (11 µA)
      EnDat Interfaces 2x EnDat 2.2 (bidirectional)
      Resolution 24-bit (0.001 arc-sec)
      Update Rate 10 kHz
      Voltage Supply 24 VDC ±10% (2.5A max)
      Temp. Range 0°C to 55°C
      IP Rating IP20
      Dimensions 185 x 120 x 45 mm
      Weight 780 g
    • Add To Inquiry
    • Have a question?
    • Share:
    Details
    Section Details
    Core Functions 1) ● Signal Conditioning: Noise-filtered 1Vpp amplification
    2) ● EnDat Master: Clock/data for absolute encoders
    3) ● Error Monitoring: Signal loss/overvoltage alarms
    Compatibility 1) Encoders: HEIDENHAIN ROD 400, EQN 400, ECN/EQN 1000
    2) Controllers: Siemens 840D sl, HEIDENHAIN TNC 620/640
    3) Drives: Bosch Rexroth IndraDrive, SEW Movitrac
    Failure Analysis 1) Common faults: Capacitor aging
    2) Recommended service: Power circuit recap
