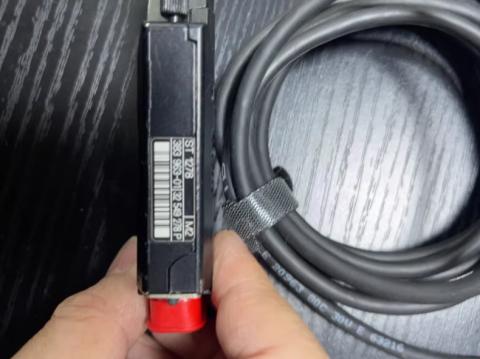

HEIDENHAIN ST1278 High-Precision Linear Encoder
- Model : ST1278
- Measurement System: Optical incremental scanning
- Resolution: 0.1 μm
- Accuracy: ±2 μm/m (±3 μm over 100mm tested)
- Signal Type: 1Vpp sinusoidal (11μA typ.)
- Max. Speed: 120 m/min
- Temp. Range: -10°C to +60°C
- Housing Material: Anodized aluminum (IP67 certified)
- Weight: 290g
- Cable: 2m PUR (Part# 381020-53)
- MTBF: 35,000 hours (est. remaining: 28,000 hrs)
- Compatible Scales: LS186, LS287, LS487 (max. 3m length)
- Add To Inquiry
- Have a question?
- Share:
Details
Condition Verification:
- 95% new
Technical Advantages:
- Patented dirt-compensating optics (DE102008043654B4)
- Auto gain control for signal stability
- Vibration resistance: 50 m/s² (10-2000 Hz)
Target Applications:
- CNC grinding machine position feedback (e.g., Kellenberger, Okamoto)
- Semiconductor wafer steppers
- CMM probe head positioning
- Printing cylinder engravers
Compatibility Notes:
- Direct replacement for ST1200/ST1250 series
