    • Home Products Pre-owned Industrial Components Hub Industrial Power Transmission Systems SEW BMG4 Electromagnetic Spring-Loaded Brake
    SEW
    • SEW

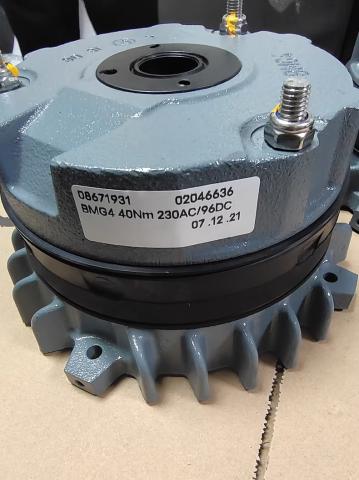

    • SEW BMG4 Electromagnetic Spring-Loaded Brake

    • Model : BMG4-40Nm-230VAC
    • Category Specification
      Braking Torque 40 Nm
      Voltage 230V AC (50/60Hz)
      Power Consumption 45 W
      Release Time ≤ 0.03 sec
      Application Time ≤ 0.02 sec
      Insulation Class F (155°C)
      Protection Class IP65
      Ambient Temperature -20°C to +80°C
      Max Speed 4,000 rpm
      Weight 2.1 kg
      Mounting Motor flange (IEC standard)

    • Add To Inquiry
    • Have a question?
    • Share:
    Details
    The SEW BMG4-40Nm electromagnetic brake delivers precise holding and emergency stopping for industrial drives:

    Design Features:

    • Spring-applied, electrically released
    • Maintenance-free design
    • Automatic air gap compensation
    • Asbestos-free friction lining

    Performance Verification:

    • Torque tested at 40Nm ±5%
    • 50,000+ operation cycles validated
    • Dielectric strength: 1.5kV AC for 1 min

    Integration Ready:

    • Direct mounting to SEW motors (e.g., DR.. series)
    • Compatible with IEC 34-7 flange sizes
    • Plug-in connector

    Safety Compliance:

    • EN 60204-1
    • SIL 2 capable with monitoring circuit
    • Fail-safe operation
